01d - Prepare Installing DevSecOps Tools

1. Create VM for Gitlab
2. Create VM for Gitlab-Runner
3. Create VM for Nexus OSS
4. Create VM for Sonarqube
5. Create VM for Apache Skywalking
6. Create VM for ansible

Create VM for Nexus OSS

Pertama kita buat dulu sebuah VM dengan specifikasi seperti berikut:

name: nke-ops-nexus-oss
description: Nexus OSS for storing container image
resources:
    CPUs: 2
    CoresPerCPU: 2
    Memory: 8
disks:
    - type: Disk
      operation: Clone from Image
      image: centos7-2207-2.disk # select vm template we created before
      capacity: 500 GiB
      busType: SCSI
networks:
    subnet: Primary
    assignmentType: Assign Static IP
    ipAddress: 10.xx.xx.71
bootConfiguration:
    mode: Legacy BIOS Mode
    bootPriority: Default
categories:
    - AppFamily:DevOps

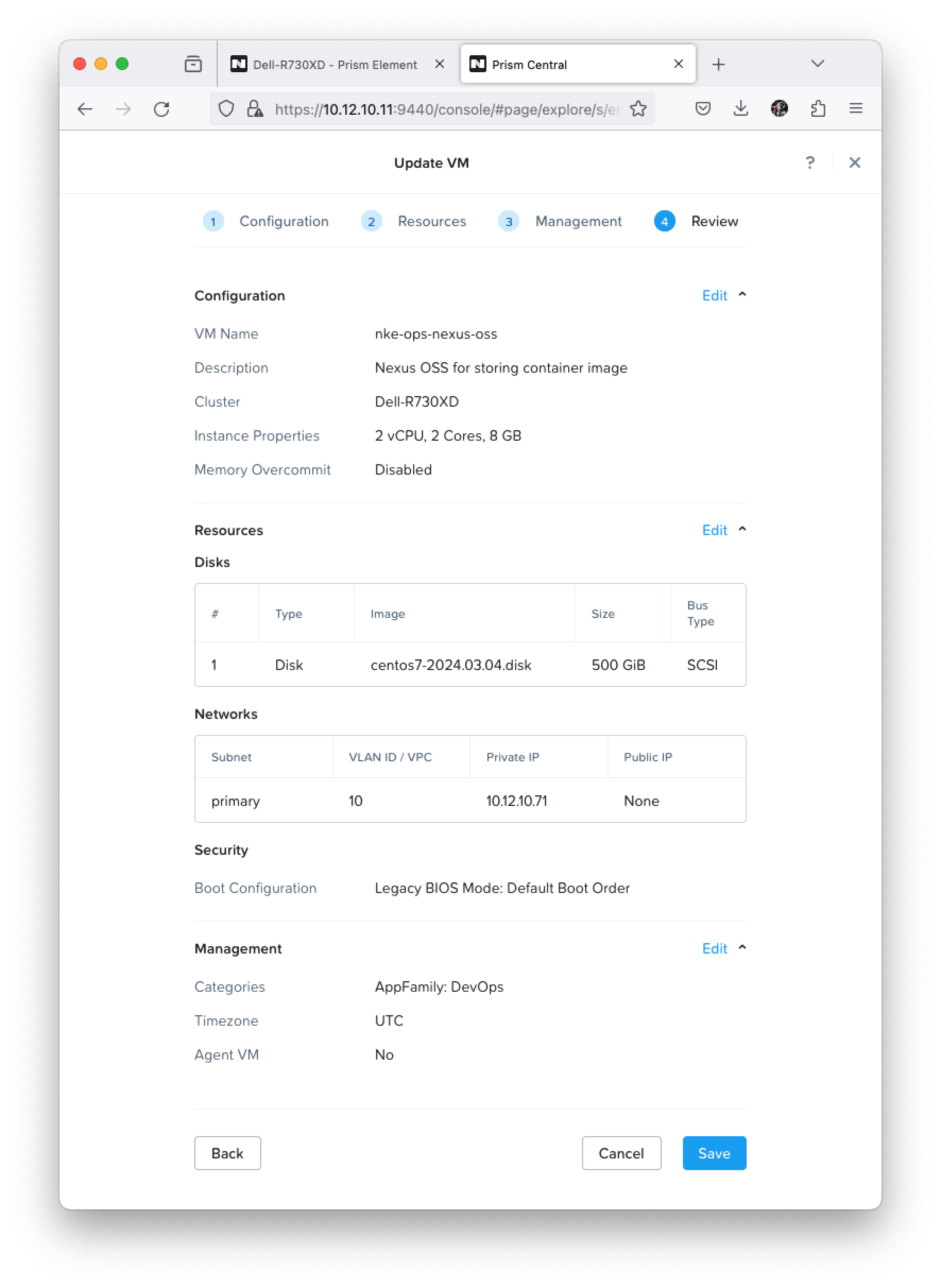

Jadi seperti berikut:

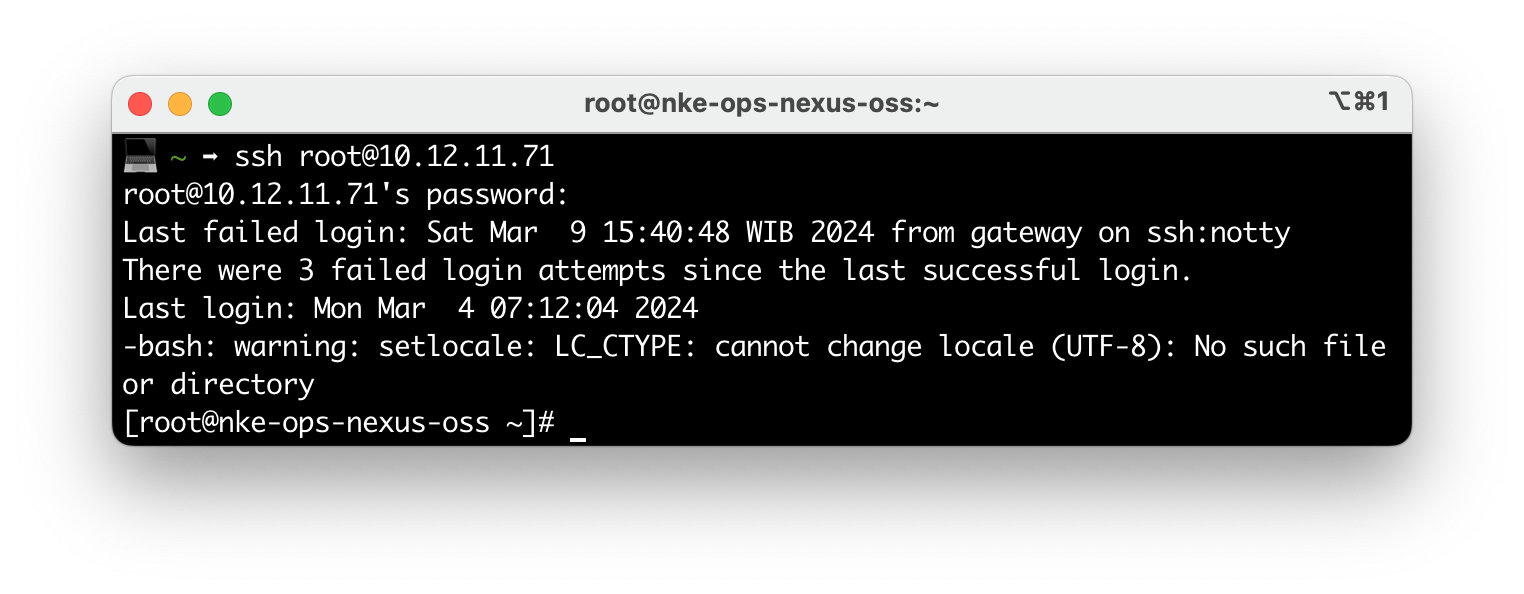

Kemudian coba nyalakan vm tersebut, dan login menggunakan user: root pass: passwordnyaAdmin seperti berikut:

Kemudian kita update disknya, karena kita buat virtual disk 500 GiB tetapi secara logical masih default image yaitu 50 GiB seperti berikut:

[root@nke-ops-nexus-oss ~]# df -h | grep \root
/dev/mapper/centos-root   46G  1.7G   44G   4% /

Maka kita harus update lvm disknya dengan menggunakan perintah berikut:

[root@nke-ops-nexus-oss ~]# fdisk -l

Disk /dev/sda: 536.9 GB, 536870912000 bytes, 1048576000 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 1048576 bytes
Disk label type: dos
Disk identifier: 0x000c0828

   Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *        2048     2099199     1048576   83  Linux
/dev/sda2         2099200   104857599    51379200   8e  Linux LVM

Disk /dev/mapper/centos-root: 48.4 GB, 48444211200 bytes, 94617600 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 1048576 bytes


Disk /dev/mapper/centos-swap: 4160 MB, 4160749568 bytes, 8126464 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 1048576 bytes

[root@nke-ops-nexus-oss ~]# fdisk /dev/sda

Command (m for help): n # type n for new partision
Partition type:
   p   primary (2 primary, 0 extended, 2 free)
   e   extended
Select (default p): p # type p for primary
Partition number (3,4, default 3): # hit enter for default value
First sector (104857600-1048575999, default 104857600): # hit enter for default value
Using default value 104857600
Last sector, +sectors or +size{K,M,G} (104857600-1048575999, default 1048575999):
Using default value 1048575999
Partition 3 of type Linux and of size 450 GiB is set

Command (m for help): w # type w for write disk
The partition table has been altered!

[root@nke-ops-nexus-oss ~]# fdisk -l

Disk /dev/sda: 536.9 GB, 536870912000 bytes, 1048576000 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 1048576 bytes
Disk label type: dos
Disk identifier: 0x000c0828

   Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *        2048     2099199     1048576   83  Linux
/dev/sda2         2099200   104857599    51379200   8e  Linux LVM
/dev/sda3       104857600  1048575999   471859200   83  Linux ## new partision was created then reboot

[root@nke-ops-nexus-oss ~]# reboot
Connection to 10.12.11.71 closed by remote host.
Connection to 10.12.11.71 closed.

## login back
ssh root@10.12.11.71
root@10.12.11.71 password: # enter root password
## create pvc
[root@nke-ops-nexus-oss ~]# pvcreate /dev/sda3
  Physical volume "/dev/sda3" successfully created.

## create vg
[root@nke-ops-nexus-oss ~]# vgcreate centos_ext /dev/sda3
  Volume group "centos_ext" successfully created

## check list vg
[root@nke-ops-nexus-oss ~]# vgs
  VG         #PV #LV #SN Attr   VSize    VFree
  centos       1   2   0 wz--n-  <49.00g    4.00m
  centos_ext   1   0   0 wz--n- <450.00g <450.00g

## merge new vg into the existing one
[root@nke-ops-nexus-oss ~]# vgmerge centos centos_ext
  Volume group "centos_ext" successfully merged into "centos"

## extend logical volume
[root@nke-ops-nexus-oss ~]# lvextend -l 100%FREE /dev/mapper/centos-root
  Size of logical volume centos/root changed from <45.12 GiB (11550 extents) to 450.00 GiB (115200 extents).
  Logical volume centos/root successfully resized.

## apply logical volume
[root@nke-ops-nexus-oss ~]# xfs_growfs /dev/mapper/centos-root
meta-data=/dev/mapper/centos-root isize=512    agcount=4, agsize=2956800 blks
         =                       sectsz=4096  attr=2, projid32bit=1
         =                       crc=1        finobt=0 spinodes=0
data     =                       bsize=4096   blocks=11827200, imaxpct=25
         =                       sunit=0      swidth=0 blks
naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
log      =internal               bsize=4096   blocks=5775, version=2
         =                       sectsz=4096  sunit=1 blks, lazy-count=1
realtime =none                   extsz=4096   blocks=0, rtextents=0
data blocks changed from 11827200 to 117964800

## check disk
[root@nke-ops-nexus-oss ~]# df -h | grep \root
/dev/mapper/centos-root  450G  1.7G  449G   1% /
